李家峡水电站位于青海省尖扎县和化隆县交界处,是黄河上游水电梯级开发中的第三级大型水电站。电站安装5台混流式水轮发电机组,单机容量40万kW,总装机200万kW,年均发电量59亿kW·h,是世界上最大的双排机水电站。
李家峡水电站原3号机调速器更换于2010年,设备的运行速度及灵敏性均不能满足西北电网《西北区域发电厂并网运行管理实施细则》和《西北区域并网发电厂辅助服务管理实施细则》(简称“两个细则”)对AGC及一次调频的考核要求,导致机组运行时频频被考核,因此亟需更换响应速度更快、动作更加灵敏的调速器。
电站经过多方调研、实地考察和反复甄别比较,最终决定3号机调速器改造选用我公司DVG2000系列CVT-150型数字插装阀水轮机调速器,其主配直径为150mm,工作油压为6.3MPa。改造期间,李家峡电站和中水科技的技术人员多次就调速器设计、调试、运行中存在的有关技术问题进行交流探讨,保证了改造工作的顺利实施。
李家峡3号机调速器改造后,经第三方陕西电科院现场测试,全部功能及性能指标均达到或超过国标、电力行业标准及合同的要求,AGC和一次调频性能完全满足西北电网“两个细则”的要求。

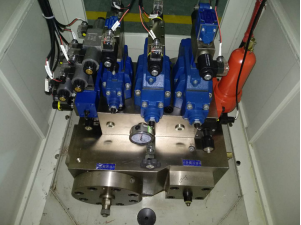

青海李家峡水电站单机400MW混流式机组调速器
